Data sheet

FUTURA 3/2-way solenoid valve (NC), G 1", 115 V AC, Futura 4
{{ $t('shop.all.artikelnummer') }}:
M CL 10 F 115V

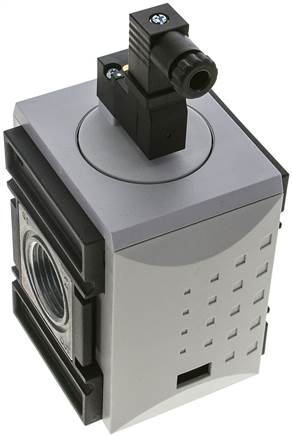

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: PA 66 GF60, cover: POM, seals: NBR
Temperature range:
-10 to +50 °C
Media:
Oiled and unoiled compressed air, neutral gasses
Advantages:
•easy assembly of single components within a model series using coupling kits
Input pressure:
2 - 10 bar (pneumatically actuated: 2 - 16 bar, series 0: 2 - 12 bar)
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Power consumption:
2,5 W / 3 VA (50 Hz)
Protection class:
IP 65 (plug size 0C)
Scope of delivery:
Valve including silencer in exhaust thread
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version 3/2-way solenoid valve (NC)
Model series Futura 4
Thread G 1"
Exhaust thread G 1/2"
Electrical controls 115 V AC
flow [l/min] 12500
H [mm] 213
H1 [mm] 102
L [mm] 85
Mounting brackets W 4 F
Coupling kit KP 4 F
Coupling kit with wall console KPW 4 F
Spare pilot valve M CL F 115V
input pressure [bar] 2 - 10
Further information:
{{ $t('shop.all.gewicht') }} 1 kg / pcs
{{ $t('shop.all.gtin') }} 4050571892173
{{ $t('shop.display.artikel.zollwarennummer') }} 84812090
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number M CL 10 F 115V.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
