Data sheet

Pump threaded connection set G 2"/Rp 1-1/4", Malleable cast iron, black
{{ $t('shop.all.artikelnummer') }}:
PVS 20114 ST

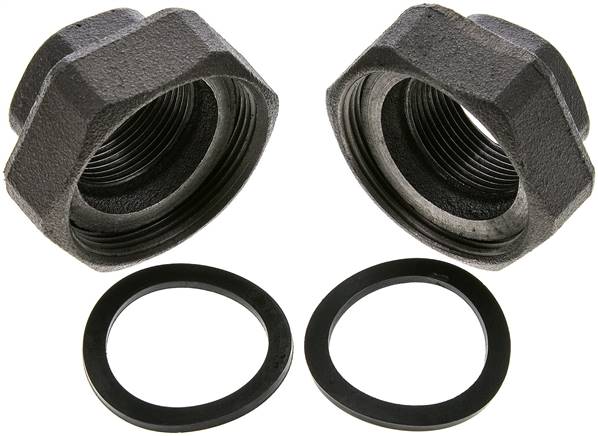

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Type brass: Seal Centellen*, Malleable cast iron type: Seal NBR
Scope of delivery:
2 screw fittings, consisting of each: 1 x union nut, 1 x pipe connection, 1 x seal
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Malleable cast iron, black
Thread, union nut (female thread) G 2"
Thread pipe connection (female thread) Rp 1-1/4"
Operating pressure [bar] 20
Replacement seals PVS 20 DI NBR
Temperature range [°C] 0 to +70
Further information:
{{ $t('shop.all.gewicht') }} 700 g / pcs
{{ $t('shop.all.gtin') }} 4050571892135
{{ $t('shop.display.artikel.zollwarennummer') }} 73071910
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number PVS 20114 ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
