Data sheet

Safety cap / protective plug (universal)
{{ $t('shop.all.artikelnummer') }}:
CAPU 6

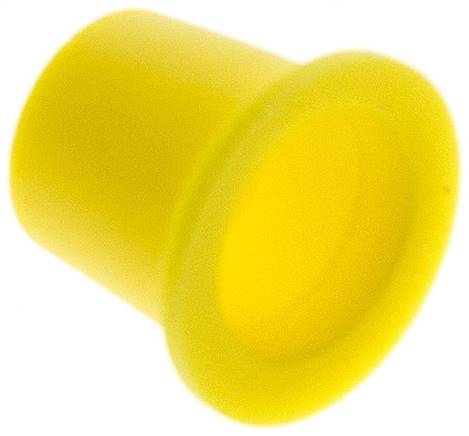

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
For protection of male threads, female threads or pipes against contamination and damage.
Materials:
LLD-PE, yellow (RAL 1016)
Temperature range:
-30 to +70 °C (temporarily max. +90 °C)
Advantages:
•for use as a plug and also suitable as a cap,
•the tapered shaft is suitable for bridging tolerances,
•easy removal owing to flanged design,
•can be recycled,
•no packing unit, can also be ordered singly
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Cap for imperial male threads undefined
Cap for metric male threads (all pitches) M 9
Plugs for imperial female threads undefined
Plugs for metric female threads (standard thread) undefined
Plugs for metric female threads (fine thread) M 12x0,75 - M 12x1 - M 12x1,25 - M 13x1,5
D [mm] 11,7
d [mm] 10,1
Further information:
{{ $t('shop.all.gewicht') }} 0,5 g / pcs
{{ $t('shop.all.gtin') }} 4050571889661
{{ $t('shop.display.artikel.zollwarennummer') }} 39269097
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Universal protective cap / universal protective plug
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number CAPU 6.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
