Data sheet
Y-socket shut-off valve, Rp 3/4", PN 10, brass, DVGW
{{ $t('shop.all.artikelnummer') }}:
MUA 34 SS

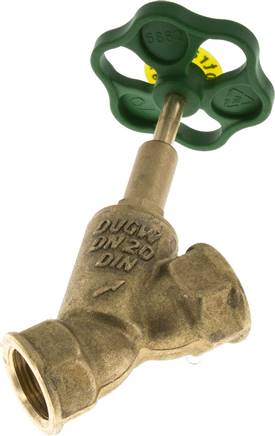

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and top: brass, seal of spindle: EPDM, sealing seat: EPDM (G2-1/2" & G 3": PTFE), handwheel: polyamide, glass fibre reinforced
Temperature range:
0 to +90 °C
Media:
Water, drinking water, neutral liquids
Advantages:
•up to G 2" dead space-free design,
•up to DN 32 tested by building authorities to prove usability with regard to noise behaviour
•up to DN 32 tested by building authorities to prove usability with regard to noise behaviour
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard |
| G | Rp 3/4" |
| DN [mm] | 20 |
| L [mm] | 75 |
| PN [bar] | 0 - 10 |
| H [mm] | 117 |
| R [mm] | 70 |
| replacement handwheel | MUA 34 SS RAD |
Further information:
| {{ $t('shop.all.gewicht') }} | 380 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571508371 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Angle seat socket shut-off valve (brass)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number MUA 34 SS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
