Data sheet
HD elbow screw-in swivel joint M 18x1,5-15 L (M22x1,5)
{{ $t('shop.all.artikelnummer') }}:
DREHWE 15 LM

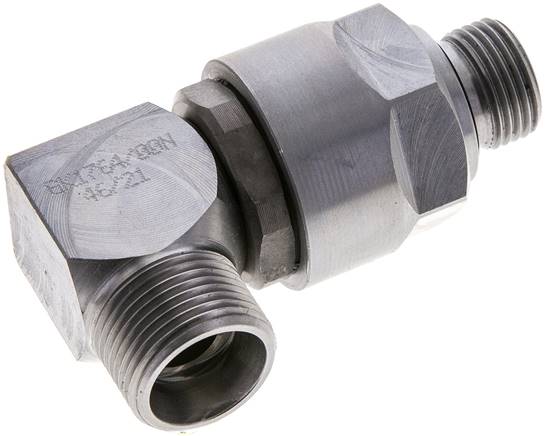

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Usage between a fixed point and a hose connected to rotating or oscillating machine components or cranes. For swivelling movements up to max. 20 rpm, uninterrupted rotational motion.
Materials:
Body: zinc-plated steel, seals: NBR
Media:
Hydraulic oil or oiled compressed air
Temperature range:
-30 to +95 °C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Pipe diameter (outer) | 15 L (M22x1,5) |
| Cushion G | M 18x1,5 |
| DN [mm] | 10 |
| Length to middle tube in elbow outlet [mm] | 60 |
Further information:
| {{ $t('shop.all.gewicht') }} | 300 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571268886 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DREHWE 15 LM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 18.12.2025
