Data sheet
Coin cells LR54, 1 unit - 11,6 x 3,05mm- 1,5 V (DC)- 44mAh
{{ $t('shop.all.artikelnummer') }}:
BAT 189 AL
Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Description:
Alkaline (AL): high energy content for continuous use, for example, for audio devices, cameras, radio transmitter, pocket calculators
Silver oxide (AgO): medium to high load for example, clocks/watches, cameras, calculators, callipers
Lithium (Li): high capacity, low self discharge rate. Suitable for use in cameras, electronic data storage, watches, remote controls for example.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | alkaline |
| IEC designation | LR54 |
| Dimension (diameter x height) [mm] | 11,6 x 3,05 |
| Amount | 1 unit |
| Voltage | 1,5 V (DC) |
| Capacity [mAh] | 44 |
Further information:
| {{ $t('shop.all.gewicht') }} | 3,1 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571221720 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85065030 |
| {{ $t('shop.all.hersteller') }} | GP Batteries |

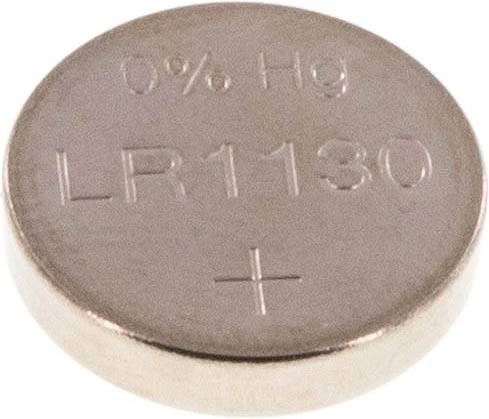

Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number BAT 189 AL.
