Data sheet
3-way ball valve, direct assembly flange G 3/4", L-borehole
{{ $t('shop.all.artikelnummer') }}:
KH 3/34 LF MS

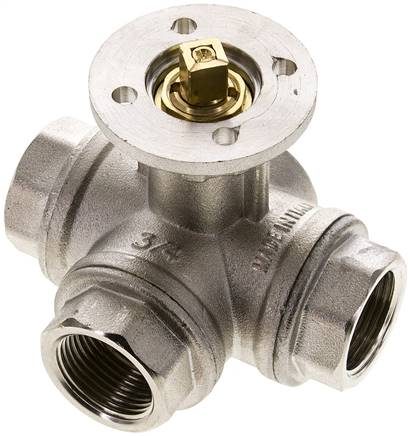

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / NBR
Temperature range:
-10 to +100 °C
Properties:
Pressure inlet is possible from all the three sides
Media:
Water, oil, compressed air, fuels, heating oil, solvents, weak acids and alkalis
Advantages:
•A drive can be mounted directly on the ISO 5211 direct assembly flange to automate the ball valve.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | L-borehole |
| G | G 3/4" |
| DN [mm] | 15 |
| L [mm] | 90 |
| PN [bar] | 0 - 40 |
| ISO 5211 (direct assembly flange) | F03 |
Further information:
| {{ $t('shop.all.gewicht') }} | 900 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571417567 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: 3-way ball valve with direct mounting flange
Drawing: Dimensions mounting flange ISO 5211 (drive-side)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 3/34 LF MS.
