Data sheet
rotary distributor G 3/8"(male thread)-4x G 3/8"(IG, 3x sealed)
{{ $t('shop.all.artikelnummer') }}:
GF 38 A

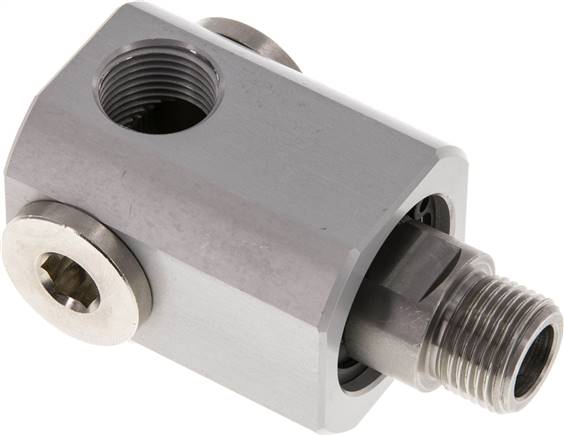

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
As a rotating compressed air supply in mechanical engineering
Materials:
Body: anodized aluminium, pivot pins: Stainless steel, ball bearing: steel, seal: NBR
Temperature range:
-10 to +60 °C
Operating pressure:
-0,95 to 10 bar
Media:
lubricated and unlubricated, filtered compressed air, vacuum
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G1 (male thread) | G 3/8" |
| G2 (4x Innengewinde, 3x mit Verschlussstopfen verschlossen) | 4x G 3/8" |
| A [mm] | 70 |
| B [mm] | 9 |
| SW [mm] | 19 |
Further information:
| {{ $t('shop.all.gewicht') }} | 260 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571324445 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 85365019 |
| {{ $t('shop.all.hersteller') }} | Festo |
Figure
Drawing:
Drawing: Rotary distributor, 4-way
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number GF 38 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 15.12.2025
