Data sheet
Strainer G 3/8", -0,99 to 20bar, Nickel-plated brass
{{ $t('shop.all.artikelnummer') }}:
SF 38 MSV

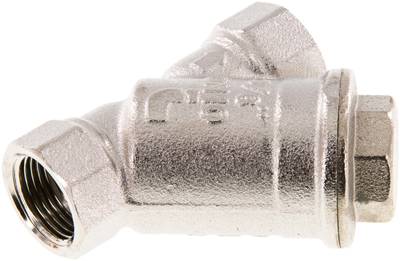

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Brass, Seal: NBR, Sieve: 1.4301
Mesh size:
0.5 mm, (G 2-1/2" to 4": 0.8 mm)
Temperature range:
-20 to +110 °C
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.99 bar)
Optional:
0,2 mm mesh size (only brass type) -F
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Nickel-plated brass |
| G | G 3/8" |
| L [mm] | 55 |
| PN [bar] | -0.99 to 20 |
| Mesh width | 0,5 mm |
| H [mm] | 40 |
| Spare screen 0.5 mm* | SFEI 143812 ES |
| Spare screen 0.2 mm | SFEI 143812 ES-F |
| D [mm] | 18 |
| T [mm] | 32,0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 125 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571622558 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84212100 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Strainer
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SF 38 MSV.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
