Data sheet

Double nipple M 26x1,5-UN 1-1/16"-12(JIC), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DN M26-11/16

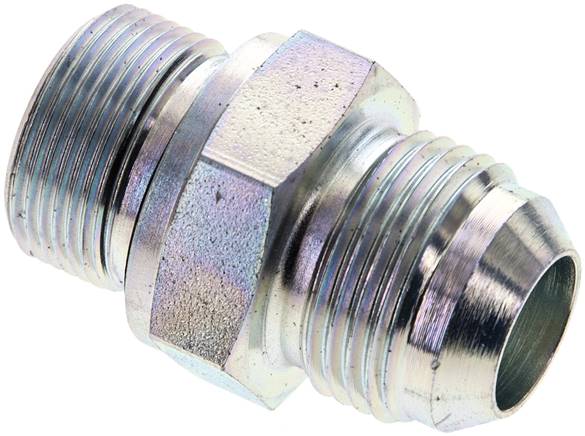

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (Type V4A: FKM)
Temperature range:
-30°C to +100°C (type V4A: -20°C to +200°C)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Zinc plated steel
Thread M 26x1,5
Thread UN 1-1/16"-12
PN* [bar] 210
Further information:
{{ $t('shop.all.gewicht') }} 145 g / pcs
{{ $t('shop.all.gtin') }} 4050571258795
{{ $t('shop.display.artikel.zollwarennummer') }} 73079290
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Double nipple with metric thread / JIC thread (male)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DN M26-11/16.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
