Data sheet

liner hose fitting (Dairy thread.) 68mm cone-50 (2")mm
{{ $t('shop.all.artikelnummer') }}:
GTMI 2050 ES SB

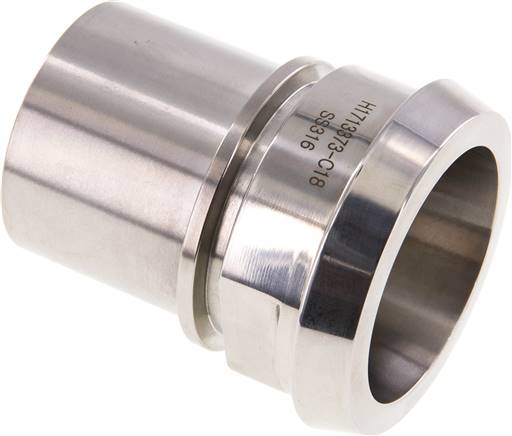

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
The hose assembly is carried out using shell hose clamps to EN 14420-3 (DIN 2817)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4401
Hose diameter (inner) [mm] 50 (2")
Taper diameter [mm] 68
DN [mm] 50
Further information:
{{ $t('shop.all.gewicht') }} 550 g / pcs
{{ $t('shop.all.gtin') }} 4050571347253
{{ $t('shop.display.artikel.zollwarennummer') }} 73072390
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number GTMI 2050 ES SB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
