Data sheet
Distributor bar 2x G 1/8"-8x M 5, Anodized aluminium
{{ $t('shop.all.artikelnummer') }}:
RLD4 18M5 A

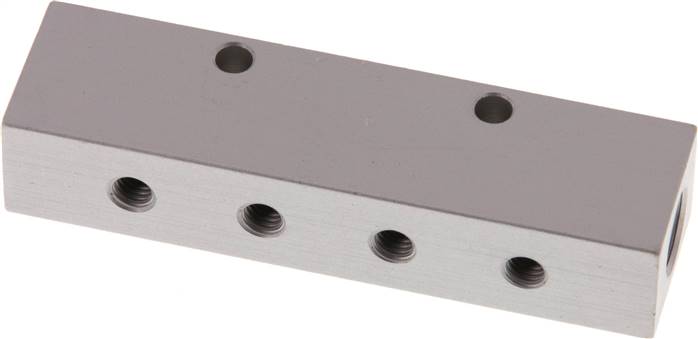

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Anodized aluminium |
| Version | 2x 4 outlets |
| Thread input | 2x G 1/8" |
| Thread outlet | 8x M 5 |
| L [mm] | 75 |
| A [mm] | 20 |
| B [mm] | 15 |
| C [mm] | 15 |
| D [mm] | 15 |
| E [mm] | 22,5 |
| F [mm] | 4,2 |
| G1 [mm] | 3,5 |
| G2 [mm] | 3,5 |
Further information:
| {{ $t('shop.all.gewicht') }} | 50 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571589752 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76169990 |
Figure
Drawing:
Drawing: Manifold strip, double-sided
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RLD4 18M5 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
