Data sheet
Distributor bar 2x G 3/8"-4x G 1/4", Anodized aluminium
{{ $t('shop.all.artikelnummer') }}:
RLD2 3814 A

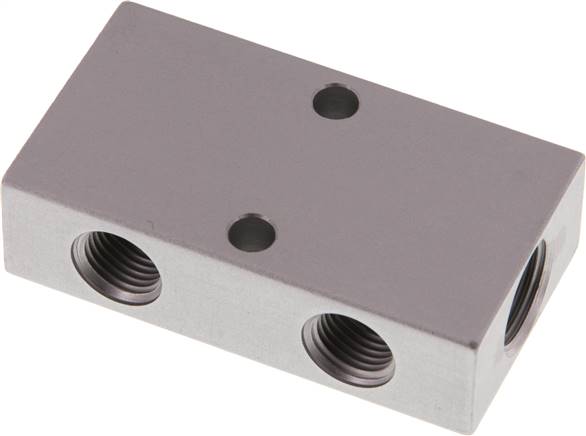

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Anodized aluminium |
| Version | 2x 2 outlets |
| Thread input | 2x G 3/8" |
| Thread outlet | 4x G 1/4" |
| L [mm] | 72 |
| A [mm] | 40 |
| B [mm] | 18 |
| C [mm] | 36 |
| D [mm] | 20 |
| E [mm] | 36,0 |
| F [mm] | 6,5 |
| G1 [mm] | 6,0 |
| G2 [mm] | 34,0 |
Further information:
| {{ $t('shop.all.gewicht') }} | 105 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571589714 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76169990 |
Figure
Drawing:
Zeichnung: Verteilerleiste doppelseitig
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RLD2 3814 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
