Data sheet
T piece, 60° cone G 1/4"-G 1/4"-G 1/4" (male thread), AISI 316
{{ $t('shop.all.artikelnummer') }}:
TA 14 HD ES

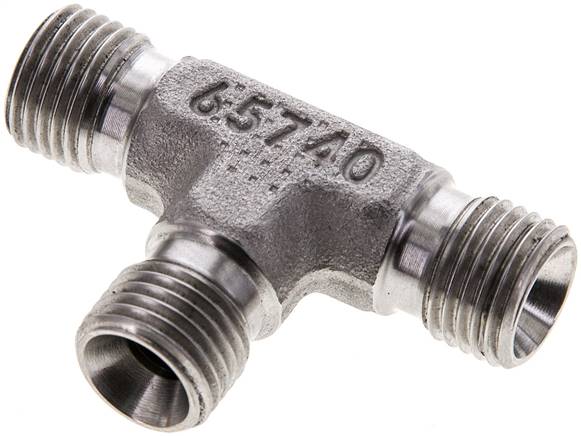

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | AISI 316 |
| Thread G1 | G 1/4" |
| Thread G2 | G 1/4" |
| PN* [bar] | 350 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571688509 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: T-screw connection with G-thread (60° universal sealing cone, male)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number TA 14 HD ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
