Data sheet
Double nipple NPT 1/2"-NPT 1/2", Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
DN 1212 NPT

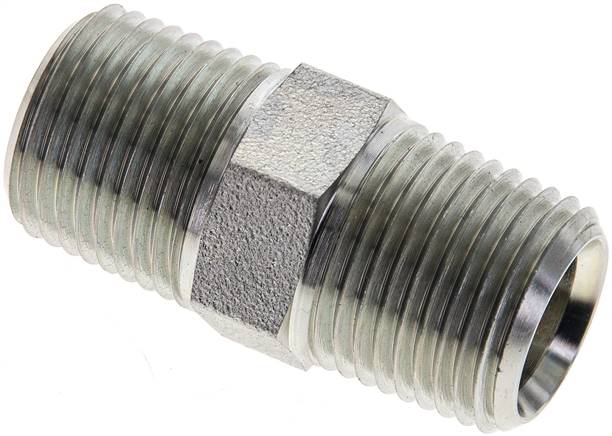

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread | NPT 1/2" |
| Thread | NPT 1/2" |
| SW [mm] | 22 |
| L [mm] | 45 |
| PN* [bar] | 210 |
Further information:
| {{ $t('shop.all.gewicht') }} | 70 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571255107 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DN 1212 NPT.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
