Data sheet

Direct assembly cylinder, Piston 16mm,stroke 15mm, Standard
{{ $t('shop.all.artikelnummer') }}:
EU 16/15

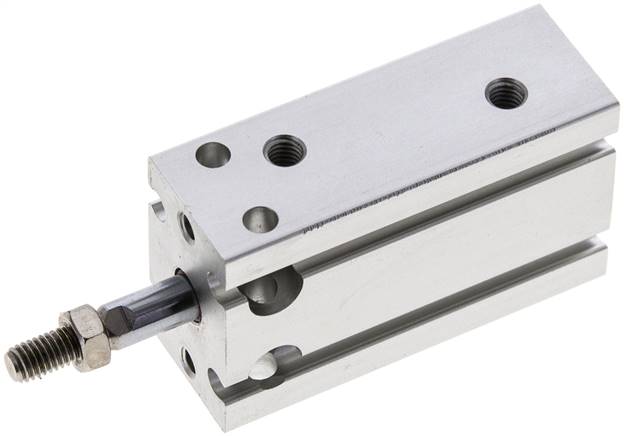

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod
Cylinder switch type:
D
Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 16
Stroke [mm] 15
Version Standard
E (piston rod thread) M 5
G (compressed air port) M 5
Repair sets EU 16 REP
A1 [mm] 40
A2 [mm] 56
B [mm] 20
C [mm] 32
D [mm] 6
D1 [mm] 16
E1 [mm] 11,0
E2 [mm] 12,5
G1 [mm] 15,5
G2 [mm] 11,5
G3 [mm] 2,0
G4 [mm] 2,0
H [mm] 7.5 (6.5 deep)
H1 [mm] 4,3
H2 [mm] 14
H3 [mm] 7
H4 [mm] 12
J M 4
J1 [mm] 25
J2 [mm] 6
SW [mm] 5
Further information:
{{ $t('shop.all.gewicht') }} 95 g / pcs
{{ $t('shop.all.gtin') }} 4050571871857
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
Figure
Drawing:
Drawing: Direct assembly cylinders
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number EU 16/15.
