pendular bridge (narrow) f. 18mm rodless cylinder
{{ $t('shop.all.artikelnummer') }}:
LZ 18 PBS

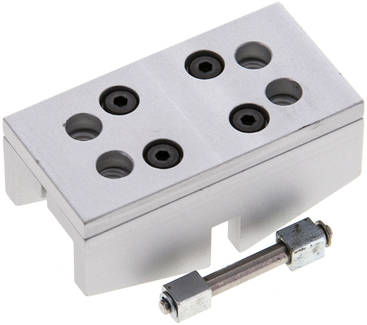

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
The pendular bridge is used where the rodless cylinder is used in connection with an external guide. The alignment inaccuracies (flexo-coupling) of a pendular bridge lead to twisting.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| for piston diameter [mm] | 18 |
| Design | narrow |
| A [mm] | 50 |
| C [mm] | 25,5 |
| D [mm] | 30 |
| F [mm] | 9 |
| G | M 5 |
| H [mm] | 54,0 |
| J [mm] | 2,5 |
| K [mm] | 4 |
| M [mm] | 4 |
| L | M 4 |
Further information:
| {{ $t('shop.all.gewicht') }} | 42 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571469412 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84129080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Pendulum bridge
Drawing: narrow pendulum bridge
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number LZ 18 PBS.
