Data sheet
Double nipple, separable R 1-1/2" flat sealing,Galvanised malleable cast iron
{{ $t('shop.all.artikelnummer') }}:
DNT 112112 F ST

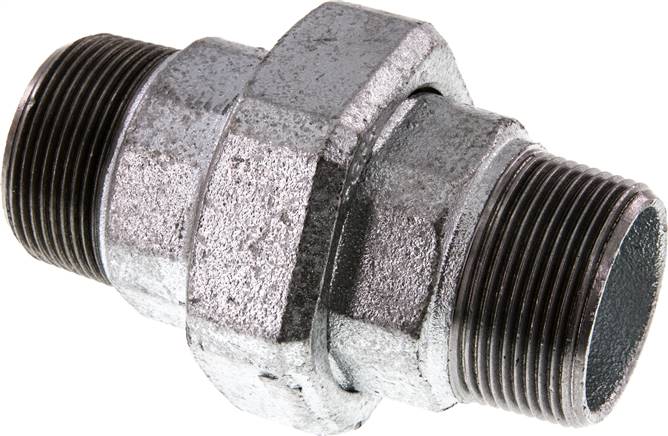

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: Type Brass: Centellen*, type 1.4408: PTFE, zinc-plated malleable cast iron type: Please order separately!
Warning:
Version of the sealing surfaces and union nuts varies depending on the manufacturer. It is not recommended to mix individual parts.
Do not forget:
Please also order seals for the malleable cast iron type!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Galvanised malleable cast iron |
| Thread | R 1-1/2" |
| PN [bar] | 25 |
| Temperature range [°C] | -20 to +80 |
| Replacement seals | DNT 112 DI NBR |
Further information:
| {{ $t('shop.all.gewicht') }} | 1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571261429 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071910 |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DNT 112112 F ST.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
