Data sheet
Safety pressure gauge vert-ical, 160mm, 0 to 40 bar
{{ $t('shop.all.artikelnummer') }}:
MSS 40160 ES

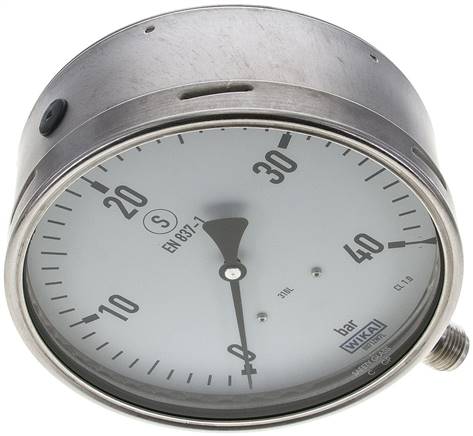

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Suitable:
Pressure gauge for extra safety in line with S 3 EN 837-1 (DIN 16006) with blow-out back and unbreakable baffle wall.
Materials:
Housing: 1.4301, measuring system and connector: 1.4404, window: Laminated safety glass
Connection thread:
G 1/2" *
Class:
1
Temperature range:
Environment: -40 to +60 °C, measured material, -40 to +200 °C
Protection class:
IP 65
Note:
WIKA Type 232.30
Optional:
ISO factory calibration (following DIN EN 837-1, determination of measurement deviation and hysteresis), DAkkS-DKD calibration (in accordance with DKD-R 6-1, traceable and accredited in accordance with DIN EN ISO/IEC 17025, decision rule 4)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Display range [bar] | 0 - 40 |
| Scale division [bar] | 1 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,4 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571505813 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90262080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | WIKA (WEEE DE92770372) |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number MSS 40160 ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 14.11.2024
