Data sheet

ISO 21287 cylinders, double acting, piston 20 mm, stroke 50 mm
{{ $t('shop.all.artikelnummer') }}:
SFS 20/50-B

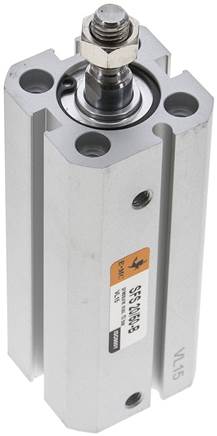

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Head and foot: aluminium, cylinder tube: anodized aluminium, piston rod: stainless steel (Ø 32 - 100: hard chromium plated steel), seal: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Optional:
Piston rod with male thread -B
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Piston diameter [mm] 20
Stroke [mm] 50
Version Piston rod with male thread
KK (piston rod male thread) M 8
G (compressed air port) M 5
Repair sets SFS 20 REP
A [mm] 16
AD [mm] 10
AF [mm] 10
BG [mm] 15
CH [mm] 8
E [mm] 36,0
E1 [mm] 0
LA [mm] 5
PL1 [mm] 15,5
PL2 [mm] 5,5
RT M 5
S [mm] 3
TG [mm] 22,0
WH [mm] 6
ZA [mm] 37
ZB [mm] 43
Further information:
{{ $t('shop.all.gewicht') }} 280 g / pcs
{{ $t('shop.all.gtin') }} 4050571927561
{{ $t('shop.display.artikel.zollwarennummer') }} 84123100
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} EMC
Figure
Drawing:
Drawing: Compact cylinder ISO 21287, Standard (Ø 20)
Drawing: Piston rod with male thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SFS 20/50-B.
