Data sheet
FISCHER heavy duty anchor FAZIIK 12x20mm, 100mm long, Stainless steel A4
{{ $t('shop.all.artikelnummer') }}:
DUBEL FAZ 12/20 K ES

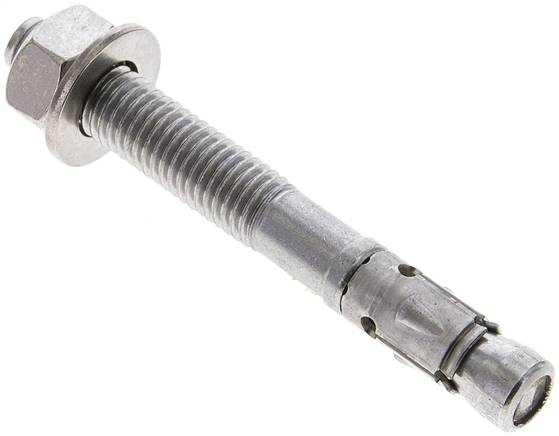

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Short bolts with a reduced anchoring depth is the most cost-effective option for a wide variety of applications, such as the mounting of cable runs and façade substructures. For mounting heavy loads in cracked concrete (tensile area) and non-cracked concrete (pressure zone). The FAZ II K is suitable for pre-positioned and through hole installation.
Recommended torque during anchoring:
Ø 10: 45 Nm, Ø 12: 60 Nm
Advantages:
•The properties of the K version are key in minimising drilling effort and hammer blows when driving the bolt anchors in, which produces savings in terms of effort and assembly time.
•The shallow hole depth of the K version enables quicker assembly and reduces the number of reinforcement strikes.
•The shallow hole depth of the K version enables quicker assembly and reduces the number of reinforcement strikes.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Stainless steel A4 |
| Bore diameter [mm] | 12 |
| Min. hole depth for through hole installation (h2) [mm] | 90 |
| min. anchoring depth (hef) [mm] | 50 |
| Anchor rod [mm] | 100 |
| Max. usable length (tfix) [mm] | 20 |
| Male thread x thread length | M 12 x 51 |
Further information:
| {{ $t('shop.all.gewicht') }} | 95 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571842918 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
Drawing:
Drawing: Fischer FAZ II K heavy-duty anchor bolt
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DUBEL FAZ 12/20 K ES.
