Data sheet

3-piece stainless steel ball valve, welding end 21,3
{{ $t('shop.all.artikelnummer') }}:
KH 123 AS ES E

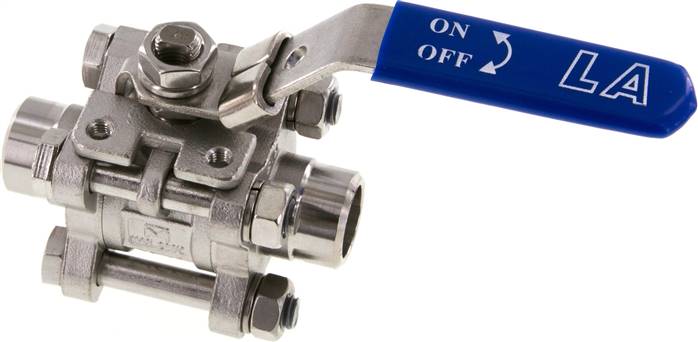

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4408, ball: 1.4408, seal: PTFE (15% GF), handle: 1.4301 (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +200 °C
Media:
Water, oil, compressed air, fuels, solvents, aggressive media
Optional:
Certificate 3.1
Advantages:
•Length according to 3202-S13 (EN 12982 ETE67),
•Mounting flange according to ISO 5211 allows subsequent mounting of a drive in conjunction with mounting bridge and shaft adapter.
•For planned automation, however, we recommend use of a ball valve with direct assembly flange
•Hand lever can be locked with a lock - please use padlocks VHS 30 (DN 63 - DN 96: VHS 60)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
A [mm] 21,3
DN [mm] 15
L [mm] 75
PN [bar] 0 - 63
B [mm] 15,7
H [mm] 62
R [mm] 104
ISO 5211 F03
Repair sets KH 123 ES E REP
Further information:
{{ $t('shop.all.gewicht') }} 550 g / pcs
{{ $t('shop.all.gtin') }} 4050571843694
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Stainless steel ball valve, 3-part, full bore, weld-on ends
Drawing: Dimensions mounting flange ISO 5211 (drive-side)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 123 AS ES E.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
