Data sheet
Elbow screw connection G 3/8"-12x9mm, for fuel hose with metal braiding
{{ $t('shop.all.artikelnummer') }}:
LCSI 389 A

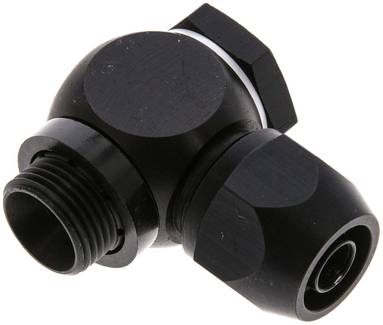

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Polypropylene, PVDF, aluminium with PVC- & PA seals, 1.4571 with PTFE seals
Operating pressure:
-0,95 to 10 bar
Advantages:
•Frequent assembly and disassembly possible,
•No hose clip or projecting mesh wires of the metal braid
•No hose clip or projecting mesh wires of the metal braid
Temperature range:
-10 to +60 °C
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Aluminium |
| Screw-in thread | G 3/8" |
| Hose diameter (outer x inner) [mm] | 12x9 |
Further information:
| {{ $t('shop.all.gewicht') }} | 50 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571462239 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 76169990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number LCSI 389 A.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
