Data sheet
Brass mini ball valve G 1/4" Female thread,PN 16
Item number:
KH 14 MK-S

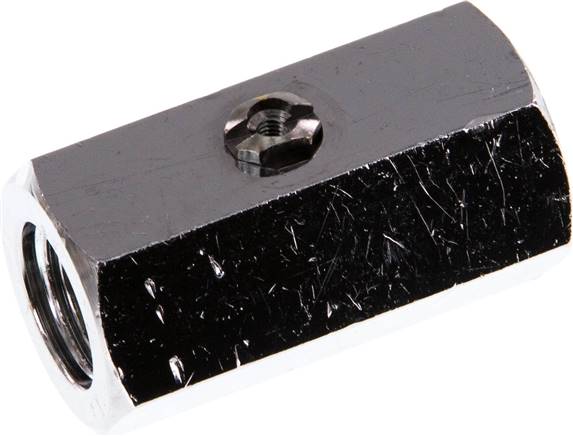

Example illustration
Item description
Materials:
Body: chrome-plated brass, ball: nickel-plated brass, seals: PTFE / NBR
Temperature range:
0 to +70 °C (temporarily 0 to +90 °C)
Media:
Water (no steam), neutral, gaseous and non-aggressive, liquid media, mineral oils, compressed air, vacuum (max. -0.9 bar)
Properties
| Version | Female thread |
| Actuation | Screwdrivers |
| Thread G (inside) | G 1/4" |
| Thread G | G 1/4" (female thread) |
| DN [mm] | 8 |
| L [mm] | 39 |
| PN [bar] | -0.9 to 15 |
| H [mm] | 13,0 |
Further information:
| Weight | 80 g / pcs |
| GTIN | 4050571828264 |
| Customs duty number | 84818081 |
| RoHS compliant | Yes |
Drawing:
Zeichnung: Mini-Kugelhahn mit Innengewinde, Schraubendreherbetätigung
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 14 MK-S.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 27.03.2025
