Data sheet
Bimetallic thermometer, horiz-ontal D63/0 to +160°C/40mm
{{ $t('shop.all.artikelnummer') }}:
TW 1606340 AL

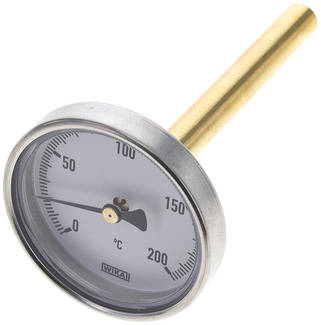

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Standard bimetallic thermometer with plenty of variants for use in heating, air conditioning, ventilation and refrigeration technology.
Materials:
Housing: Aluminium, thermowell: copper alloy, Window: SAN (transparent plastic)
Display correction:
At stem end
Connection:
G 1/2"
Dip shaft Ø (with protective tube and locking screw):
11,5 mm
Class:
2
Temperature range:
Environment: -20 to +60 °C
Operating pressure at the thermowell:
max. 6 bar
Note:
WIKA Type A50
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Diameter [mm] | 63 |
| Display range [°C] | 0 to +160 |
| Stem length L [mm] | 40 |
| Scale division [K] | 2 |
| B [mm] | 23 |
Further information:
| {{ $t('shop.all.gewicht') }} | 75 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571707255 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90251900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | WIKA (WEEE DE92770372) |
Figure
Drawing:
Drawing: Horizontal bimetal thermometer with aluminium housing and copper thermowell
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number TW 1606340 AL.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
