Data sheet
Brass ball valve, G 1-1/2", -0,98 to 40bar, spring locking
{{ $t('shop.all.artikelnummer') }}:
KH 112 FS

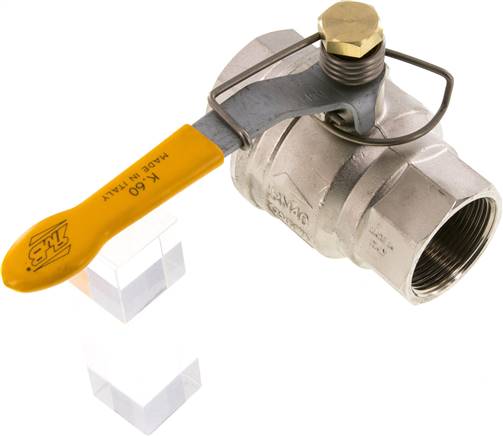

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE / FKM, spring: 1.4310, handle: galvanised steel, manufactured silicone-free
Temperature range:
-20 to +170 °C (dependent on operating pressure), fuels -20°C up to max. +60°C
Media:
Water, compressed air, vacuum (max. -0.98 bar), oils, fuels (5 bar max.), heating oil
Function:
The basic setting the ball valve is in the closed position. It is opened against the spring force. When releasing the handle it jumps into the "Close" position. Closing should be supported manually (no quick shut-off valve).
Advantages:
•Length according to DIN 3202-M3
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Thread G | G 1-1/2" |
| DN [mm] | 40 |
| L [mm] | 120 |
| PN [bar] | -0.98 to 40 |
| H [mm] | 81 |
| R [mm] | 158 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,6 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571406523 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: 2-part ball valve, with spring return
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 112 FS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
