Data sheet

Flange screw joint 1/2"-SAE (6000 PSI), G 1/2" (Female thread)
{{ $t('shop.all.artikelnummer') }}:
GFI 612/12

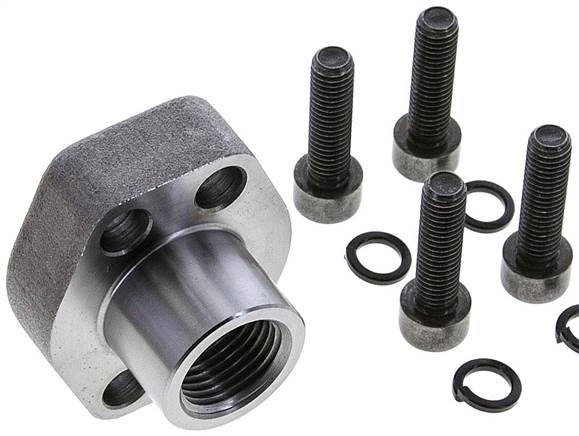

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: Plain steel, seal: NBR
Temperature range:
-30 to +90 °C
Scope of delivery:
Screwed-in flange with O-ring and metric screws
Optional:
Stainless steel 1.4404 with NBR seals -ES
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Plain steel
SAE- hole pattern 1/2"-SAE (6000 PSI)
Female thread G G 1/2"
B [mm] 13
E [mm] 18,24
C [mm] 40,49
L [mm] 9
Operating pressure [bar] 420
Further information:
{{ $t('shop.all.gewicht') }} 330 g / pcs
{{ $t('shop.all.gtin') }} 4050571324827
{{ $t('shop.display.artikel.zollwarennummer') }} 73071990
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: SAE flange with female thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number GFI 612/12.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
