Data sheet
Coupling socket (HF) with hose screw connection, Polysulphone
{{ $t('shop.all.artikelnummer') }}:
KDS 13 HF PSU BA

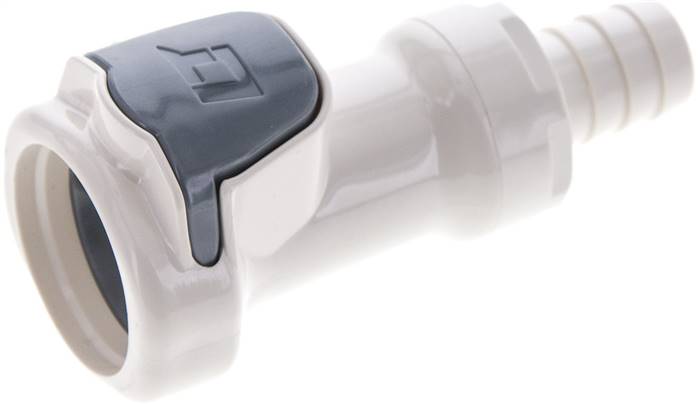

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Plug diameter:
18,5 mm
Flow air (water)*:
1200 - 4100 l/min (15 - 57 l/min)
Function:
Coupled by plugging the plug into the sleeve until you hear a “click”. Pressing the ergonomic plastic release button (protected against accidental unlocking) releases the plug once again. It is possible to combine coupling plugs and coupling sockets with and without a shut-off valve, and made of different materials as desired. The shut-off valve prevents the medium from spilling out when uncoupled.
Polypropylene type:
Materials:
Body, valves and release button: polypropylene (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: EPDM, external spring below push-button: AISI 302, bulkhead nut: Polypropylene, bulkhead seal: EPDM
Temperature range:
0°C to max. +70°C
Operating pressure:
-0.8 to 4,2 bar (>+27°C observe pressure reductions: +40°C: max. 3,4 bar,+ +50°C: max. 2,7 bar,+ 60°C: max. 2,2 bar,+ +70°C: max 1.7 bar)
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, MEK, oxygen**, ozone, carbon dioxide, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation
Operating range:
Suited for use with many chemicals. Not resistant to mineral oils.
Type polysulphone:
Materials:
Body, valves and release button: Polysulphone (raw material in accordance with FDA), valve springs: Stainless steel AISI 316, seals: EPDM, external spring below push-button: AISI 302, bulkhead nut: Polypropylene, bulkhead seal: EPDM
Temperature range:
-40°C to max. +138°C
Operating pressure:
-0.8 to 8,6 bar (>+90°C observe pressure reductions: +100°C: max. 8,2 bar,+ +110°C: max. 7,8 bar,+ +120°C: max. 7,4 bar,+ +130°C: max. 7,1 bar,+ +138°C: max 6.8 bar)
Media:
Compressed air, water, many acids and alkaline solutions, alcohol, glycol, oxygen**, ozone, many chemicals
Sterilisation possible with:
Formalin, isopropyl alcohol, ethyl alcohol, ethylene oxide, gamma radiation, heating to max. +121°C (uncoupled), autoclaves at max. +121°C (uncoupled)
Operating range:
Compatible with**:
CPC Colder HFC12, CPC Colder HFC35, LinkTech series 60PP, LinkTech series 60PS
For general applications, applications at high temperatures. Not resistant to mineral oils. Not suited for external use as it is not UV-stabilised.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Polysulphone |
| Version | With shut-off valve |
| Hose diameter (inner) [mm] | 12,7 (1/2") |
| Temperature range [°C] | -40 to +138 |
| Operating pressure [bar] | -0.8 to 8.6 |
Further information:
| {{ $t('shop.all.gewicht') }} | 24 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571399078 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | LinkTech |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KDS 13 HF PSU BA.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
