Data sheet
Stainless steel ball valve with venting borehole G 3/4", PN 16
{{ $t('shop.all.artikelnummer') }}:
KH 34 ENTLEER ES

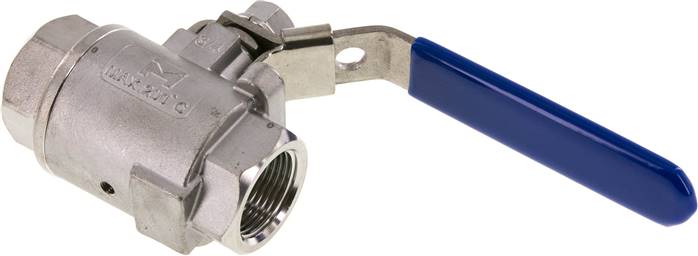

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For breathing and venting of compressed air systems, pressure gauges, etc., for the medium of air, water, vacuum (max. -0,99 bar)
Materials:
Body: 1.4408, ball: 1.4408, seal: PTFE (15% GF), handle: 1.4301 (only silicone-free seals and lubricants are used during assembly)
Temperature range:
-20 to +200 °C
Media:
Air, water, vacuum (max. -0.98 bar)
Optional:
Certificate 3.1
Advantages:
•Hand-lever can be locked with a lock - please use the padlocks VHS 30
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 3/4" |
| Venting thread | M 5 |
| DN [mm] | 20 |
| L [mm] | 77 |
| PN [bar] | -0.98 to 16 |
| H [mm] | 62 |
| R [mm] | 124 |
| Matching silencer | SD 50 ES |
Further information:
| {{ $t('shop.all.gewicht') }} | 650 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571420031 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Stainless steel ball valve, 2-part, with forced venting (enclosed)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 34 ENTLEER ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
