Data sheet

Swing check valve G 3/4", PN 12, Brass, soft sealing
{{ $t('shop.all.artikelnummer') }}:
RUCK 34 SKB

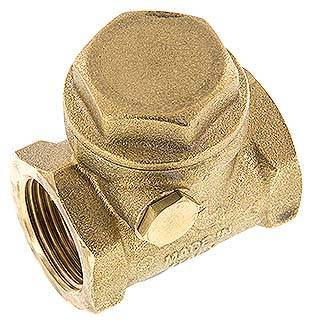

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: brass, seal: NBR (for soft-sealing version)
Temperature range:
0 to +90 °C
Media:
Water (no steam), neutral, non-aggressive, liquid media, mineral oils
Warning:
Only suitable for fluid media. Flap valve closes by gravity, therefore only possible to be installed horizontally!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version soft sealing
G G 3/4"
L [mm] 52
H [mm] 60
PN [bar] 12
Further information:
{{ $t('shop.all.gewicht') }} 280 g / pcs
{{ $t('shop.all.gtin') }} 4050571608217
{{ $t('shop.display.artikel.zollwarennummer') }} 84813099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Check valve flap
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RUCK 34 SKB.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
