Data sheet

VABP-S3-26V1G-G18-2 (2605074) Sub-base
{{ $t('shop.all.artikelnummer') }}:
OT-FESTO040572

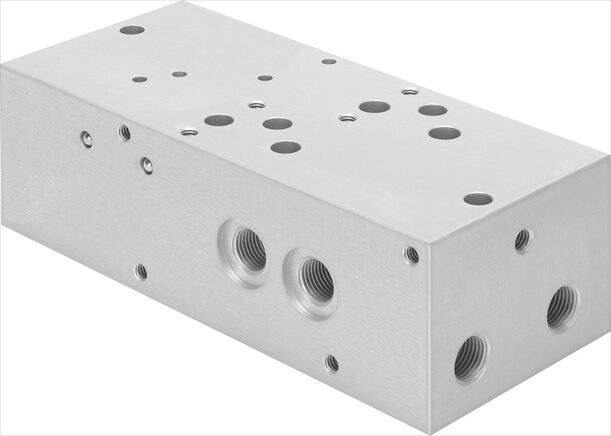

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
ambient temperature [°C] 0 to 50
Material information RoHs compliant
installation position arbitrary
Build.width [mm] 26
Function connection 32 G1/8
Function connection 34 G1/8
Pneumatic connection 22 G1/8,
Connection plate
Pneumatic connection 44 G1/8,
Connection plate
Operating pressure [bar] 0 to 16
Normal nominal flow [l/min] 800
Operating medium Compressed air to ISO 8573-1:2010 [6:4:4]
Corrosion resistant class KBK 0 - No corrosion stressing
Medium temperature [°C] 0 to 50
Control air 14 connection M5
Pneumatic connection 2 G1/8
Pneumatic connection 4 G1/8
Connection strip material Aluminium wrought alloy
O-ring material NBR
Screws material Steel
Further information:
{{ $t('shop.all.gewicht') }} 800 g / pcs
{{ $t('shop.all.gtin') }} 4052568254797
{{ $t('shop.display.artikel.zollwarennummer') }} 84819000
{{ $t('shop.all.hersteller') }} Festo
Figure
