Data sheet
Double nipple, separable R 1/4" flat sealing,1.4408
{{ $t('shop.all.artikelnummer') }}:
DNT 1414 F ES

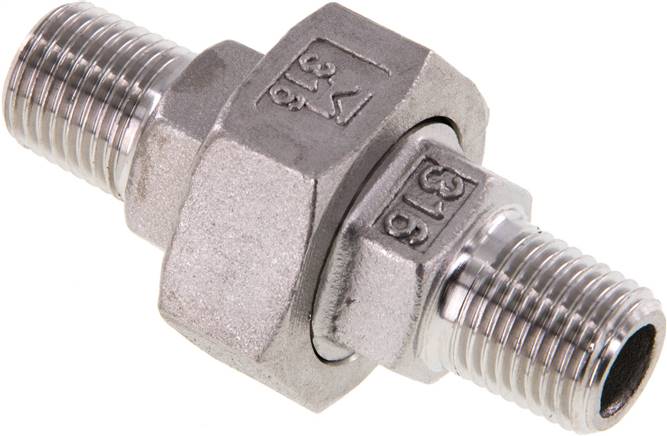

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: Type Brass: Centellen*, type 1.4408: PTFE, zinc-plated malleable cast iron type: Please order separately!
Warning:
Version of the sealing surfaces and union nuts varies depending on the manufacturer. It is not recommended to mix individual parts.
Do not forget:
Please also order seals for the malleable cast iron type!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | 1.4408 |
| Thread | R 1/4" |
| PN [bar] | 16 |
| Temperature range [°C] | -200 to +200 |
| Replacement seals | DNT 14 DI TE |
Further information:
| {{ $t('shop.all.gewicht') }} | 80 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571262341 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73071990 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DNT 1414 F ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
