Data sheet
Socket head cap screw DIN 84, M 3x30, Galvanised steel 4.8
{{ $t('shop.all.artikelnummer') }}:
84-M3X30

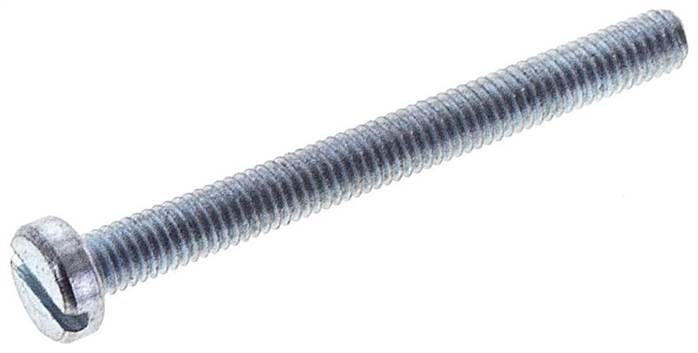

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Galvanised steel 4.8 |
| D | M 3 |
| L [mm] | 30 |
| Dk [mm] | 5,5 |
| K [mm] | 2,0 |
| N [mm] | 0,8 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,6 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571169961 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Slotted cheese head screw DIN 84 / ISO 1207
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 84-M3X30.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
