Data sheet
FISCHER aerated concrete anchor FPX-I, M 8 (IG)
{{ $t('shop.all.artikelnummer') }}:
DUBEL FPX M8-I

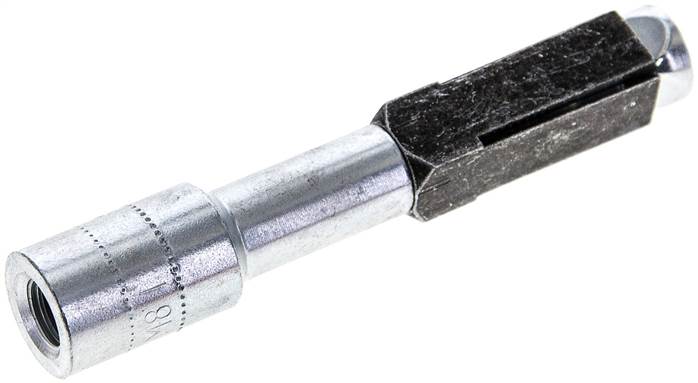

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Female thread anchor for aerated concrete
Advantages:
•safe, uniform, easy installation (not requiring excessive force),
•fewer fastening points (4-fold spread ensures high tensile and lateral loads),
•Use for safety-relevant fastenings (ETA approval)
•fewer fastening points (4-fold spread ensures high tensile and lateral loads),
•Use for safety-relevant fastenings (ETA approval)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Bore diameter [mm] | 10 |
| min. drill hole depth (h1) [mm] | 95 |
| min. anchoring depth (hef) [mm] | 70 |
| Anchor rod [mm] | 75 |
| Female thread | M 8 |
| Screw-in depth (E) [mm] | 8 - 15 |
Further information:
| {{ $t('shop.all.gewicht') }} | 50 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571276706 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181900 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
Drawing:
Zeichnung: Fischer FPX-I-Porenbetonanker
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DUBEL FPX M8-I.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
