Data sheet
Adjustable elbow cutting ring screw connection G 1/8"-6 L (M12x1,5), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
EW 6 LR

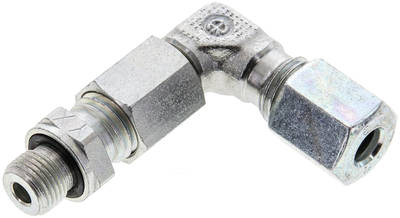

Example illustration
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | light model series |
| Pipe diameter (outer) | 6 L (M12x1,5) |
| Screw-in thread | G 1/8" |
| Operating pressure [bar] | 315 |
| Temperature range [°C] | -35 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 55 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571290856 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Adjustable angle screw-in fitting, G-thread
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number EW 6 LR.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
