Data sheet

Elbow screw connection flat sealing Rp 3/8" (Female thread)
{{ $t('shop.all.artikelnummer') }}:
WT 38 F ES

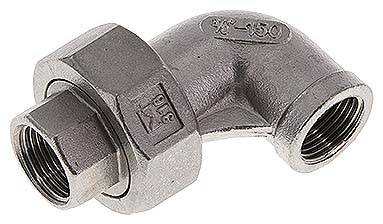

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: type malleable cast iron, galvanised: Centellen*, Type 1.4408: PTFE
Temperature range:
-200 to +200 °C
Warning:
Version of the sealing surfaces and union nuts varies depending on the manufacturer. It is not recommended to mix individual parts.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material 1.4408
Thread Rp 3/8"
PN [bar] 16
a [mm] 50
c [mm] 27
Replacement seals DNT 38 DI TE
Further information:
{{ $t('shop.all.gewicht') }} 150 g / pcs
{{ $t('shop.all.gtin') }} 4050571787301
{{ $t('shop.display.artikel.zollwarennummer') }} 73072290
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Elbow fitting with female thread, flat sealing
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number WT 38 F ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
