Data sheet
ISO 15552-bolts 250 mm (spherical), Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
FFQ 250

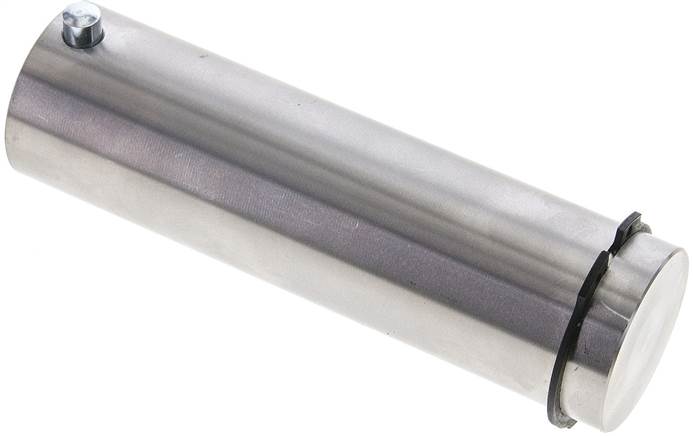

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Scope of delivery:
Bolts complete with compression rings
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| for piston diameter [mm] | 250 |
| A [mm] | 121,0 |
| B [mm] | 140 |
| C [mm] | 12,0 |
| D [mm] | 40 |
| E [mm] | 8 |
| F [mm] | 48 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,4 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571296384 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73182900 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
| {{ $t('shop.all.hersteller') }} | Airtec (WEEE DE94696834 ) |
Figure
Drawing:
Drawing: Bolt for spherical tab
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number FFQ 250.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
