Data sheet
HD elbow screw-in swivel joint M 22x1,5-16 S (M24x1,5)
{{ $t('shop.all.artikelnummer') }}:
DREH 16 SM

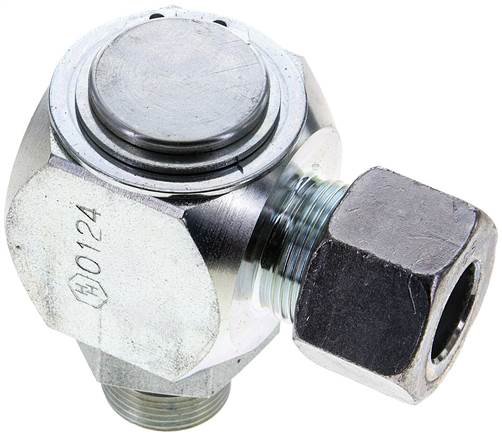

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Seal: NBR (Type 1.4404: FKM)
Temperature range*:
-20°C to max. +100°C (Type 1.4404: -20°C to max. +120°C)
Media:
lubricating media (e.g. hydraulic oil or oiled compressed air)
Field of application:
Between a fixed point and a hose on rotating or oscillating machine components. Hose can vibrate and rotate due to the slide bearing shaft under maximum pressure loading.
Warning:
To balance out alignment inaccuracies, the use of a flexible connection is imperatively recommended.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Model series | heavy model series |
| Pipe diameter (outer) | 16 S (M24x1,5) |
| Screw-in thread | M 22x1,5 |
| DN [mm] | 13 |
| Umax.* [1/min] | 1,0 |
| Operating pressure* [bar] | 400 |
| Temperature range* [°C] | -20 to +100 |
Further information:
| {{ $t('shop.all.gewicht') }} | 550 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571267445 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73079910 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: Angular swivel joint, metric
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DREH 16 SM.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
