Data sheet
Reducing nipple R 1"(male thread)-NPT 1"(Female thread), 1.4571
Item number:
RN 10R10NPT ES

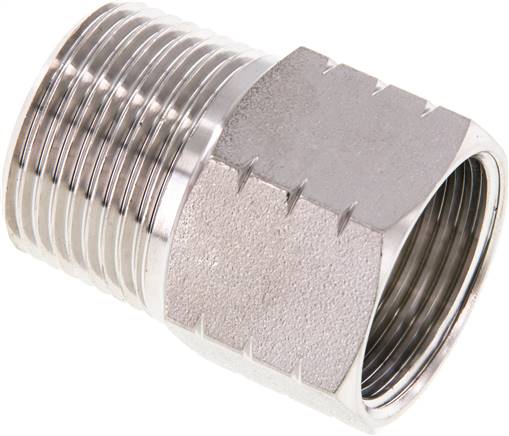

Example illustration
Properties
| Material | 1.4571 |
| Thread external | R 1" |
| Thread internal | NPT 1" |
| PN [bar] | 40 |
| Spanner width [mm] | 36 |
| L [mm] | 26 |
Further information:
| Weight | 170 g / pcs |
| GTIN | 4050571591533 |
| Customs duty number | 73072910 |
| RoHS compliant | Yes |
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RN 10R10NPT ES.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
As of: 22.04.2025
