Data sheet
FISCHER threaded rod, M 8 x 110, Zinc plated steel
{{ $t('shop.all.artikelnummer') }}:
FI FISA M8X110

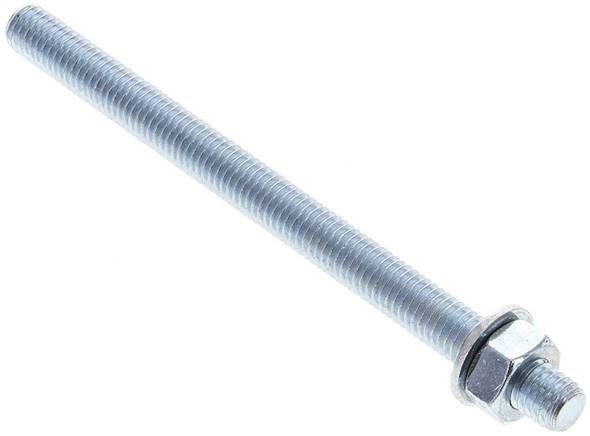

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
The cut-to-length threaded rods are used in conjunction with injection mortar and, if necessary, anchor sleeves to mount supports, rails, shelves, brackets, railings, scaffolding or façades. This threaded rod has a building authority approval in conjunction with injection mortar FIS .... Can be used in cracked and non-cracked concrete, masonry (use anchor sleeves if necessary) and aerated concrete.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Material | Zinc plated steel |
| Thread d | M 8 |
| Length L [mm] | 110 |
| Bore diameter* [mm] | 10 |
| Min. depth of anchoring* [mm] | 60 |
| Max. usable length* [mm] | 39 |
Further information:
| {{ $t('shop.all.gewicht') }} | 43 g / pcs |
| {{ $t('shop.all.gtin') }} | 4006209902752 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181542 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number FI FISA M8X110.
