Data sheet

Pneumatic PVC ball valve, 20mm, double acting, Adhesive sleeve, EPDM-seal
{{ $t('shop.all.artikelnummer') }}:
PVCKH 20 EP P

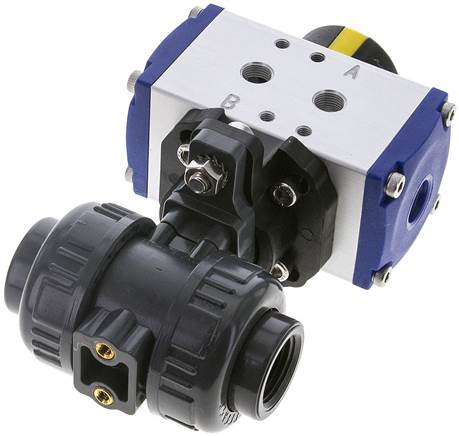

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Ball valve
Materials:
Body: PVC-U, bridge: PP, seal: EPDM or FKM, ball seat: PTFE
Temperature range:
0 to +60 °C
Operating range:
Industry, water treatment or water supply
Rotary actuator
Design:
ATEX-compliant Ex II 2GD c 85° C (drive with size 12 or greater: Ex II 2GD c 110° C)
Materials:
Housing: Anodized aluminium, gear rack and piston: Aluminium, cover: acetal resin, seal: NBR
Temperature range:
-20 to +80 °C
Control pressure:
6 to 10 bar (lower pressures on request)
Optional:
FKM seal -V
Warning:
Not suitable for compressed air or other gases under pressure!
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version double acting
Comments Adhesive sleeve, EPDM-seal
Glue socket Inner diameter of ball valve [mm] 20
DN [mm] 15
Installation length ball valve [mm] 80
PN [bar] 0 - 16
Flow* [l/min] 190
Spare drives PDD 001-F04-VK9
Further information:
{{ $t('shop.all.gewicht') }} 650 g / pcs
{{ $t('shop.all.gtin') }} 4050571556860
{{ $t('shop.display.artikel.zollwarennummer') }} 84818081
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} Köly Deutschland
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number PVCKH 20 EP P.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 18.12.2025
