Data sheet
Brass ball valve with venting borehole G 1-1/4",PN 14
{{ $t('shop.all.artikelnummer') }}:
KH 114 ENTLEER

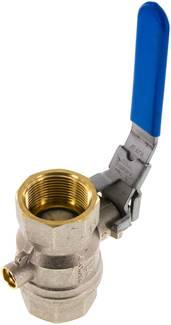

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
For breathing and venting of compressed air systems, pressure gauges, etc., for the medium of air, water, vacuum (max. -0,99 bar)
Materials:
Body: nickel-plated brass, ball: hard chromium plated brass, seal: PTFE, produced silicone-free
Temperature range:
-10 to +100 °C (dependent on operating pressure)
Media:
Air, water, vacuum (max. -0.98 bar)
Advantages:
•Hand-lever can be locked in the closed position with a lock - please use the padlocks VHS 30 (G 1-1/4" - G 2": VHS 40)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| G | G 1-1/4" |
| Venting thread | G 1/4" |
| DN [mm] | 32 |
| L [mm] | 93 |
| PN [bar] | -0.98 to 14 |
| H [mm] | 80 |
| R [mm] | 157 |
| Matching silencer | SD 14 |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4050571407452 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84818081 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
Drawing:
Drawing: 2-part ball valve, with forced venting (enclosed)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number KH 114 ENTLEER.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
