Data sheet

pressure regulator, Brass, G 1/4", 0,2 to 3bar (Standard)
{{ $t('shop.all.artikelnummer') }}:
R 014-3 MS

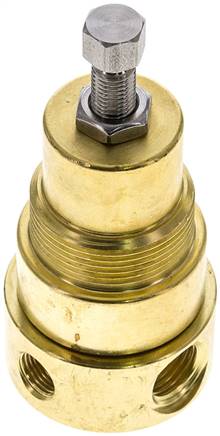

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Flow:
Kv-value 0.35 m³/h, 330 l/min*
Version:
Self-relieving (with secondary vent), optionally non-relieving
Materials:
Seals: FKM, membrane: NBR (PTFE-coated)
Temperature range:
-20°C to +80°C
Input pressure:
max. 30 bar
Media:
oiled and unoiled compressed air, non-toxic gasses (with option -NB: Gasses and liquids, demineralised water (with option -CO: CO2 (only for brass type))
Pressure gauge connection:
G 1/8"
Switch panel thread:
M 30x1,5
Optional:
Version non-reversible for gases and liquids (NBR membrane, PTFE-coated), -NB, Version non-reversible with EPDM seals for CO2 (only for type Brass) -CO
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard
Material Brass
Thread G 1/4"
Pressure regulation range [bar] 0,2 - 3
Mounting bracket including nuts of 1.4436 WH 014 ES
Mounting bracket of steel WHM 30
Brass nuts SM 1
Reversible spare diaphragm MEMB R014MS
recommended pressure gauge MW 440
Further information:
{{ $t('shop.all.gewicht') }} 360 g / pcs
{{ $t('shop.all.gtin') }} 4050571563691
{{ $t('shop.display.artikel.zollwarennummer') }} 84811099
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Pressure regulator (solid)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number R 014-3 MS.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 16.12.2025
