Data sheet
Stainless steel pressure switch 1 to 10 bar, G 1/4"
{{ $t('shop.all.artikelnummer') }}:
DRS 10 ES-EP

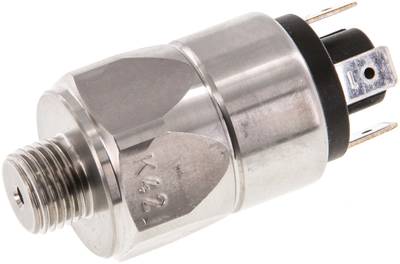

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body: 1.4305, seal and diaphragms**: FKM
Temperature range:
-5°C to +120°C
Switch-back difference (hysteresis)
10 - 30 % of the value that has been set
Protection class:
IP 65 (clamps IP 00)
Electrical connection:
Blade connector 6.3x0.8 (AMP 6.3x0.8)
Switch type:
changeover contact
Optional:
Diaphragm made of EPDM (-30°C to max. +120°C) -EP
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Pressure switches |
| Setting range [bar] | 1 - 10 |
| Thread | G 1/4" |
| Sealing material | EPDM |
| Safe at overpressure up to [bar] | 300 |
| Switch capacity* | 250 V / 4 A |
| Connector | DRS STECKDOSE |
Further information:
| {{ $t('shop.all.gewicht') }} | 100 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571271961 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 90268080 |
| {{ $t('shop.display.artikel.rohskonform') }} | {{ $t('shop.all.ja') }} |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DRS 10 ES-EP.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 18.12.2025
