Data sheet
FISCHER hammer fix 8x80, 100 pack, Standard (countersunk head)
{{ $t('shop.all.artikelnummer') }}:
DUBEL N8X80/40S

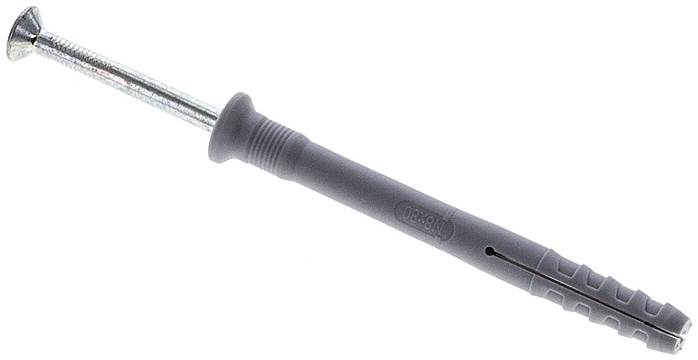

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Application:
Concrete and solid brick wall materials, honeycomb brick, aerated concrete The hammer fix is used to quickly and rationally fasten wooden slats, frames, cable channels, and foils. For this purpose the dowel is simply hammered in. The cross recess allows a subsequent loosening of the nail for adjustment.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Version | Standard (countersunk head) |
| Bore diameter [mm] | 8 |
| Min. hole depth for through hole installation [mm] | 95 |
| min. anchoring depth [mm] | 40 |
| Dowel length [mm] | 80 |
| Max. usable length [mm] | 40 |
| Amount | 100 pack |
Further information:
| {{ $t('shop.all.gewicht') }} | 1,1 kg / pcs |
| {{ $t('shop.all.gtin') }} | 4006209487921 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73181558 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number DUBEL N8X80/40S.
