Data sheet
pipe clamp 25 to 30mm, zinc-plated steel with insert, FISCHER
{{ $t('shop.all.artikelnummer') }}:
RSF 30

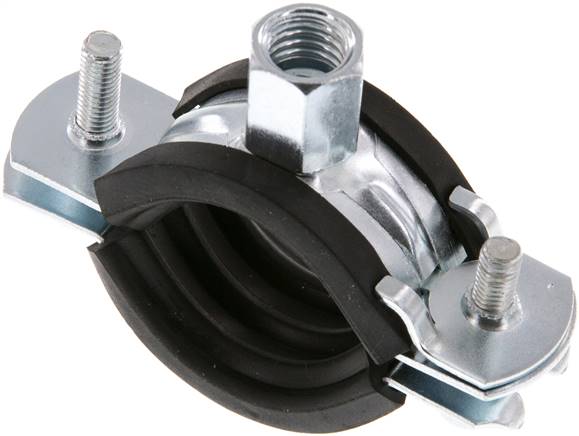

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Clamp: Steel, galvanized, Wadding: SBR / EPDM
Temperature range:
-40 to +100 °C
Advantages:
•Sound insulation for DIN 4109,
•quick fastener guarantees a simple and quick assembly,
•large opening angle for easy inserting of tubes (pipe clamp is opened by folding down),
•with reliable engaging, the tube can be pre-assembled and adjusted before tightening the clamp.
•quick fastener guarantees a simple and quick assembly,
•large opening angle for easy inserting of tubes (pipe clamp is opened by folding down),
•with reliable engaging, the tube can be pre-assembled and adjusted before tightening the clamp.
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Diameter clamping range [mm] | 25 - 30 |
| Thread G* | M 8 & M 10 |
| Width B [mm] | 18 |
| permitted load [N] | 980 |
Further information:
| {{ $t('shop.all.gewicht') }} | 46 g / pcs |
| {{ $t('shop.all.gtin') }} | 4006209794432 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 73269098 |
| {{ $t('shop.all.hersteller') }} | Fischer |
Figure
Drawing:
Drawing: Fischer pipe clamp with rubber insert
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number RSF 30.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
