Data sheet

ACE shock absorber, M 33x1,5, stroke 50 mm, Standard, self-adjusting
{{ $t('shop.all.artikelnummer') }}:
MC 3350 EUM0

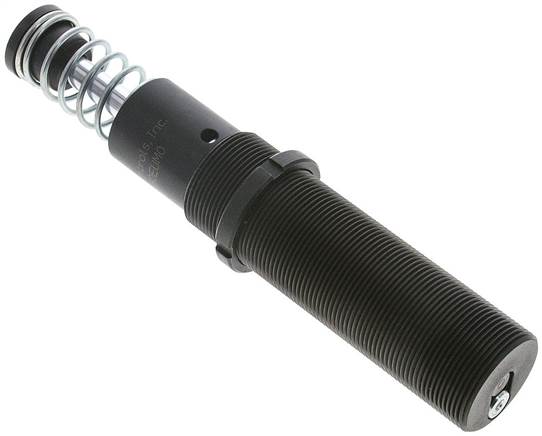

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
shock absorber body and accessory: Steel bronzing, piston rod: hard chromium-plated steel, head: hardened and bronzed steel, compression spring: zinc plating or KU-coated
Temperature range:
-12°C to max. +66°C
Stroke speed:
0,15 to 5 m/s (upon request, up to 20 m/s)
Fixed limit stop:
integrated
Optional:
High temperature version (0°C up to max. +150°C) -HT, low temperature version (-50°C up to max. +66°C) -LT
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Version Standard, self-adjusting
Thread B M 33x1,5
Stroke [mm] 50
max. Energy consumption per stroke (W3) [Nm] 330
max. Energy consumption per hour (W4) [Nm] 85000
effective mass (me) [KGM] 5 - 22
Spring force [N] 45 - 135
A [mm] 140,4
C [mm] 48,6
D [mm] 25
Max. axial deviation* [°] 3
Impact head PP 33
clamping flange QF 33
Side load adapter** BV 3350
Locking nut NM 33
Temperature range [°C] -12 to +66
Further information:
{{ $t('shop.all.gewicht') }} 650 g / pcs
{{ $t('shop.all.gtin') }} 4050571481438
{{ $t('shop.display.artikel.zollwarennummer') }} 84879059
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
{{ $t('shop.all.hersteller') }} ACE
Figure
Drawing:
Drawing: Shock absorber (Magnum)
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number MC 3350 EUM0.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
