Data sheet
5/3-way solenoid valve, G 1/4", Centre position breathing, 24 V AC
{{ $t('shop.all.artikelnummer') }}:
SF4503 IPSC-A4

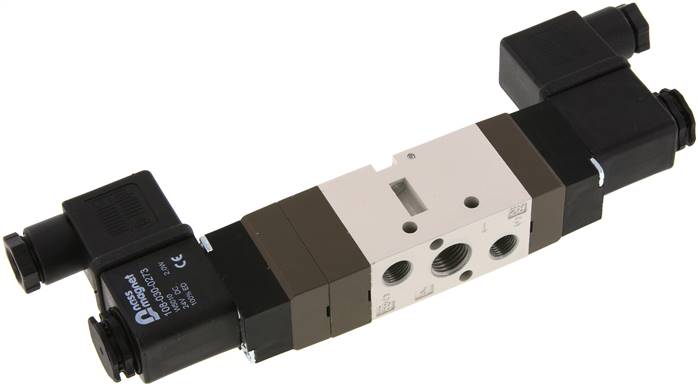

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Materials:
Body and slider: aluminium, seals: NBR, pilot: polyamide (glass fibre reinforced)
Temperature range:
-10 to +60 °C
Media:
oiled and unoiled filtered compressed air
Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages
Voltage tolerance:
± 10 %
Information:
These valves are always supplied with a solenoid coil and a connector plug.
Switching time (at 5 bar):
< 35 ms
Protection class:
IP 65
Structural shape solenoid coil:
M (plug size 1)
{{ $t('shop.display.artikel.eigenschaften_headline') }}
| Control voltage | 24 V AC |
| function | Centre position breathing |
| Thread (3x) | G 1/4" |
| Thread exhaust air (2x) | G 1/8" |
| Operating pressure [bar] | 2 - 10 |
| flow [l/min] | 590 |
| Power consumption (AC) [VA] | 4,1 |
| Spare solenoid coil | MAG M 24VAC |
Further information:
| {{ $t('shop.all.gewicht') }} | 440 g / pcs |
| {{ $t('shop.all.gtin') }} | 4050571622886 |
| {{ $t('shop.display.artikel.zollwarennummer') }} | 84812090 |
| {{ $t('shop.all.hersteller') }} | YPC |
Figure
Drawing:
Drawing: 5/3-way solenoid valve
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number SF4503 IPSC-A4.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 21.12.2025
