Data sheet

Socket head cap screw DIN 912, M 4x50, Galvanised steel 8.8
{{ $t('shop.all.artikelnummer') }}:
912-M4X50

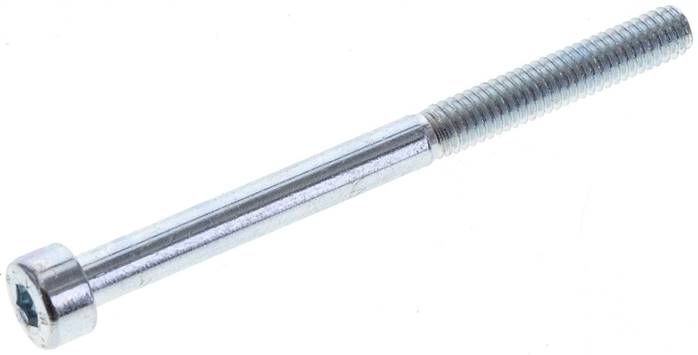

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
Items with part threads will also be supplied, depending on the manufacturer, threaded to approaching the head.
Optional:
Steel blank (black) -ST, strength class 10.9 -10.9, strength class 12.9 -12.9, stainless-steel A4 -ES4A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Galvanised steel 8.8
D M 4
L [mm] 50
B (min.) [mm] 20
Dk (max) [mm] 7,0
K (max) [mm] 4,0
S [mm] 3
Further information:
{{ $t('shop.all.gewicht') }} 5,1 g / pcs
{{ $t('shop.all.gtin') }} 4050571128364
{{ $t('shop.display.artikel.zollwarennummer') }} 73181568
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Hexagon socket screw DIN 912 / ISO 4762
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 912-M4X50.
