Data sheet

Socket head cap screw DIN 6912, M 6x20, Galvanised steel 8.8
{{ $t('shop.all.artikelnummer') }}:
6912-M6X20

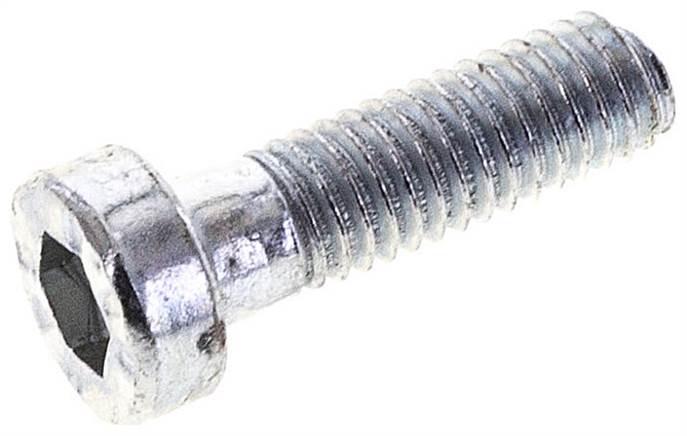

Example illustration
{{ $t('shop.display.artikel.beschreibung_headline') }}
Note:
Items with part threads will also be supplied, depending on the manufacturer, threaded to approaching the head.
Optional:
Steel blank (black) -ST, strength class 10.9 -10.9, stainless steel A4 -ES4A
{{ $t('shop.display.artikel.eigenschaften_headline') }}
Material Galvanised steel 8.8
D M 6
L [mm] 20
B [mm] reaching close to head
Dk [mm] 10,0
K [mm] 4,0
S [mm] 5
Further information:
{{ $t('shop.all.gewicht') }} 5,2 g / pcs
{{ $t('shop.all.gtin') }} 4050571058821
{{ $t('shop.display.artikel.zollwarennummer') }} 73181900
{{ $t('shop.display.artikel.rohskonform') }} {{ $t('shop.all.ja') }}
Figure
Drawing:
Drawing: Hexagon socket screw DIN 6912
More information on this item and the process for ordering it can be found in our online shop https://www.landefeld.com under item number 6912-M6X20.
Landefeld Druckluft und Hydraulik GmbH · Konrad-Zuse-Straße 1 · 34123 Kassel · Germany
All data are to be understood as non-binding reference values! We do not assume liability for any data selection not confirmed in writing. Unless otherwise specified, pressure values refer to liquids from Group II at +20°C.
Our products arid goods are generally only intended for industrial and commercial uses.
As of: 19.12.2025
